From CPU to ASIC: A look at the evolution of mining hardware

The article details the evolution of cryptocurrency mining hardware from its inception to the present day, providing a guide on how to choose a mining rig.

Evolution of Mining Hardware: The development is broken down into four distinct eras:
- CPU Era (2009-2010): Mining began on standard home computer CPUs when network difficulty was low.
- GPU Era (2010-2013): Miners discovered graphics cards (GPUs) were far more efficient for parallel processing, increasing mining power significantly.
- FPGA Era (2012-2013): A short transitional phase using more efficient, customizable hardware that was soon outpaced.
- ASIC Era (2013-Present): Application-Specific Integrated Circuits (ASICs), designed for specific algorithms like Bitcoin's SHA-256, now dominate professional mining due to their unparalleled performance and efficiency.
Mainstream Mining Machines in 2025: The market offers specialized hardware for different cryptocurrencies.
- Bitcoin (SHA-256): Machines like the Antminer U3S23 Hyd. and S21e XP Hyd. offer immense computing power but are expensive and have high power consumption, making them suitable for large-scale operations with cheap electricity.
- Dogecoin/Litecoin (Scrypt): Machines like the ElphaPex DG2+ and DG Hydro 1 have lower computational requirements, making them more accessible for small and medium-sized miners.
Performance Comparison: Key metrics for choosing a miner include hashrate (computing power) and energy efficiency (joules per terahash). Lower power consumption per unit means higher efficiency and lower operational costs, which is crucial for profitability and environmental sustainability.
Mining Advice: Key considerations for anyone looking to start mining include:
- Defining goals (e.g., Bitcoin vs. altcoins) based on budget.
- Calculating costs, with electricity cost being the primary factor (ideally <$0.08/kWh).
- Considering practicalities like noise for home mining and required maintenance.
- Being aware of market volatility and using tools like hedging or flexible mining pools to manage risk.
Future Trends: The future of mining hardware points towards:
- Continued improvements in energy efficiency.
- A greater focus on green mining using renewable energy sources.
- A potential revival of home mining for altcoins with more accessible, low-power devices.
- Efforts to combat the centralization of computing power to uphold blockchain's decentralized principles.

Written by: Dr. Chai Encryption

From early home computer CPUs to today's professional ASIC mining rigs, how has mining hardware evolved? How do you choose a mining rig? This article will answer all your questions and guide you into the hardware world of "digital gold mining"!

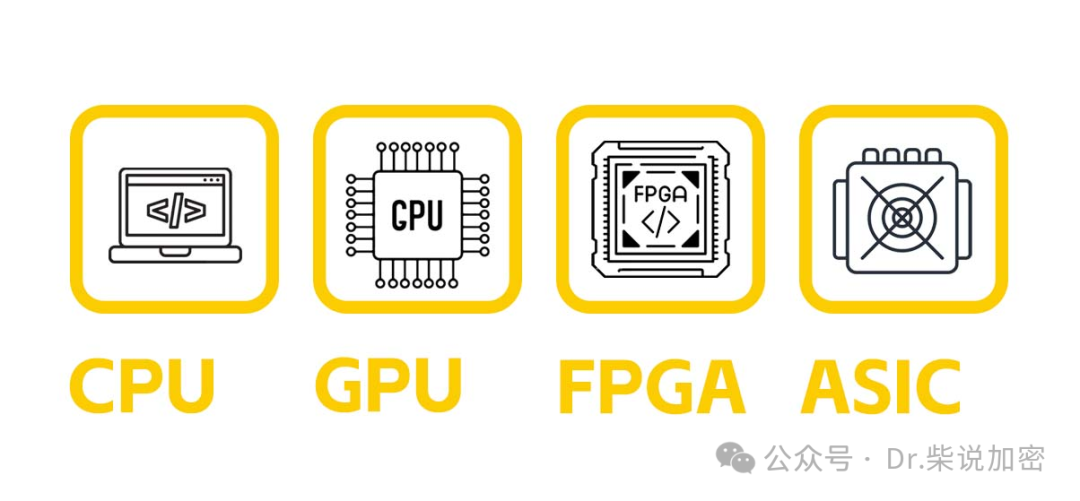

The Evolution of Mining Hardware: From Home Computers to Professional Mining Farms

Since Bitcoin was born in 2009, the development of mining hardware has gone through several stages. Let's take a look at this hardware revolution through time:

1. CPU Era (2009-2010): Mining with Ordinary Computers

Background: When Bitcoin was first launched, its founder, Satoshi Nakamoto, was able to mine using the CPU (central processing unit) of an ordinary computer.

Characteristics: Back then, the network's computing power was low, and Bitcoin could be mined on a standard laptop. For example, in 2010, someone mined thousands of BTC (worth hundreds of millions of dollars today!) using a home computer.

Limitations: The CPU has weak computing power and low efficiency. As the mining difficulty increases, the CPU will soon be unable to keep up.

2. GPU Era (2010-2013): The Rise of Graphics Card Mining

Background: Miners have discovered that GPUs (graphics processing units, such as NVIDIA and AMD graphics cards) are better at parallel computing than CPUs and are therefore suitable for hash operations in mining.

Features: GPU mining efficiency has increased dozens of times, attracting more people to join.

Limitations: GPUs consume a lot of power, are difficult to dissipate, are noisy for home mining, and have limited computing power.

3. FPGA Era (2012-2013): Transitional Phase

Background: An FPGA (field programmable gate array) is a customizable hardware that is more efficient than a GPU but requires specialized knowledge to configure.

Features: Lower power consumption than GPU and stronger computing power, but expensive and less popular.

Limitations: FPGAs are a transitional technology and will soon be replaced by more efficient ASICs.

4. ASIC Era (2013-Present): Dominance of Professional Mining

Background: ASICs (Application-Specific Integrated Circuits) are specialized chips designed for specific algorithms (such as Bitcoin's SHA-256 and Dogecoin/Litecoin's Scrypt), with performance far exceeding that of GPUs and FPGAs.

Features: ASIC mining machines have strong computing power and high efficiency, becoming the mainstream of modern mining.

Current situation: In 2025, ASIC mining machines dominate Bitcoin, Dogecoin, and Litecoin mining, making home devices almost uncompetitive.

> Summary

The evolution of mining hardware from CPUs to ASICs has marked a leap forward in computing power and efficiency, but it has also raised the bar for entry. While professional mining rigs are now the mainstream, ordinary people can still get started mining certain altcoins using GPUs.

Inventory of mainstream mining machines: Bitcoin/Dogecoin/Litecoin's powerful tools

In 2025, there will be a wide variety of mining machines available on the market, tailored to different cryptocurrencies (e.g., Bitcoin's SHA-256 algorithm and Dogecoin/Litecoin's Scrypt algorithm). Below is an overview of the performance, price, and power consumption of several mainstream mining machines, based on the latest market information.

1. Bitcoin Mining: SHA-256 Algorithm Mining Machine

These mining machines are designed for SHA-256 algorithms such as Bitcoin (BTC) and Bitcoin Cash (BCH). They have strong performance but are relatively expensive and consume a lot of power.

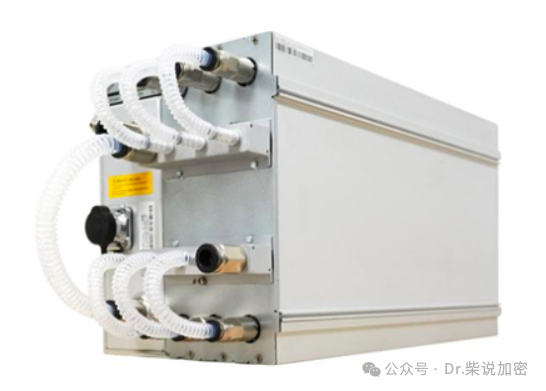

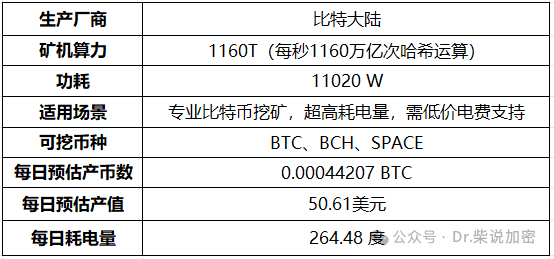

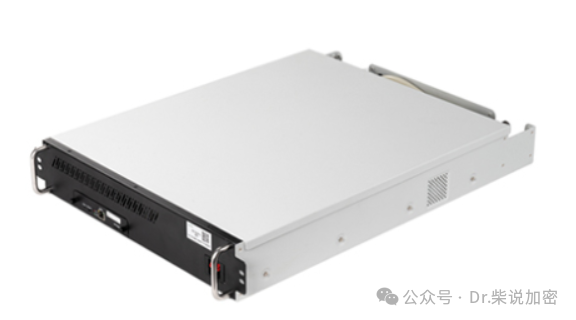

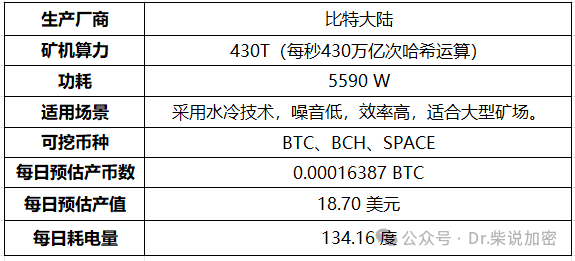

Ant U3S23 Hyd.

Antminer S21e XP Hyd.

Note: The above estimated data results are only applicable to mining in PPS mode. Since mining income is affected by factors such as mining machines and mining farm electricity, the calculation results are for reference only.

2. Dogecoin and Litecoin Mining: Scrypt Algorithm Mining Machine

Dogecoin (DOGE) and Litecoin (LTC) use the Scrypt algorithm, which has lower computing power requirements than SHA-256, and some mining machines are suitable for small and medium-sized miners.

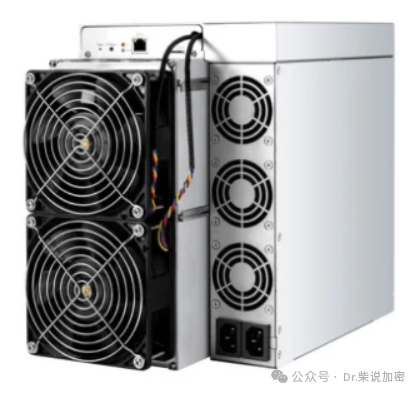

ElphaPex DG2+

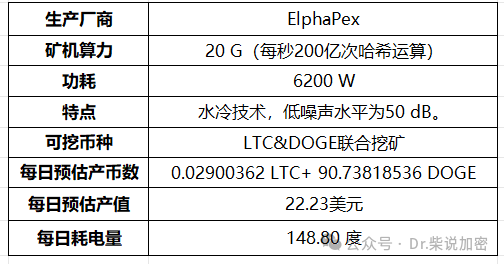

ElphaPex DG Hydro 1

Note: The above estimated data results are based on mining under the current difficulty PPS mode. Since mining income is affected by factors such as mining machines and mining farm electricity, the calculation results are for reference only.

Performance comparison of mainstream mining machines

The following is a performance comparison of mainstream mining machines in 2025, covering Bitcoin, Dogecoin, and Litecoin mining machines:

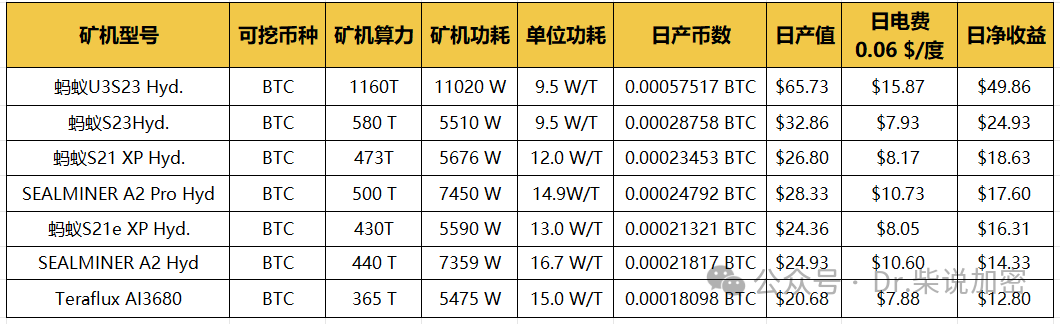

> Bitcoin Mining Machine

 Data source: F2pool

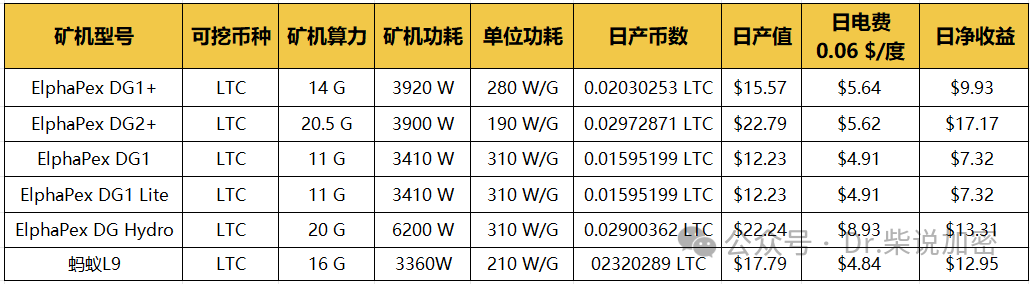

> Dogecoin & Litecoin Mining Machines:

 Data source: F2pool

Notes:

Low power consumption per unit means high efficiency: This value represents the amount of energy a mining machine consumes to generate a certain amount of computing power. Lower power consumption means the mining machine uses less electricity to complete the same computing task, resulting in higher energy efficiency.

Directly impacting mining costs: One of the main costs of mining is electricity. Mining machines with low unit power consumption consume less electricity at the same computing power, reducing the mining cost per unit of computing power and thus improving economic efficiency.

Environment and sustainability: Lower unit power consumption means less energy waste and less impact on the environment, which is in line with the trend of energy conservation and emission reduction.

Cryptocurrency Mining Advice

Reminder: Cryptocurrency mining activities must be conducted in compliance with local laws and regulations.

Choosing a mining machine requires a comprehensive consideration of budget, electricity costs, mining goals, and site conditions. The following are a few suggestions for reference only:

1. Clearly define mining goals:

Want to mine Bitcoin? Choose a SHA-256 miner, but you need a high budget and low electricity costs.

Low-power Scrypt miners are more suitable for beginners.

2. Calculate costs and benefits:

Use the Mining Revenue Calculator to estimate your payback period.

Electricity costs are key: electricity costs > $0.15/kWh may result in losses. It is recommended to choose areas with electricity costs < $0.08/kWh.

3. Consider the venue and noise:

For home mining, choose low-noise equipment (water-cooled equipment) or GPU.

Professional mining machines require independent space or mining farms.

Mining machines require regular maintenance, and attention should be paid to the safety of electrical equipment.

4. Pay attention to market fluctuations

The market prices of Bitcoin, Dogecoin, and Litecoin will directly affect mining revenue.

In situations of high volatility, professional miners can lock in future profits in advance through "hedging".

Choose a mining pool that supports multiple currencies and flexibly switch between high-yield currencies.

Summary: From CPU to ASIC, the future of mining hardware

From CPU mining at the birth of Bitcoin in 2009 to the comprehensive dominance of ASIC mining machines today, the evolution of mining hardware has not only witnessed the rapid development of the cryptocurrency industry, but also profoundly changed the rules of the game of "digital gold rush".

In the early days, ordinary people could participate in Bitcoin mining with their home computers, easily earning "digital gold." Today, Bitcoin mining has become a professional arena. ASIC mining machines, with their ultra-high computing power and energy efficiency, have become the standard equipment for large-scale mining farms and professional miners. This specialized hardware is optimized for Bitcoin's SHA-256 algorithm, providing unparalleled performance. However, the high cost and specialized operation requirements make it prohibitive for ordinary people.

Meanwhile, Scrypt-based cryptocurrencies like Dogecoin and Litecoin remain a fertile ground for newcomers. GPU mining and entry-level Scrypt miners offer low costs and flexibility, attracting budget-conscious or beginner users. Dogecoin's meme-driven appeal and Litecoin's stable ecosystem make these currencies ideal for small-scale mining.

Looking ahead, mining hardware trends will be more diverse:

Improved efficiency: The next generation of ASIC mining machines will further optimize energy efficiency, reduce power consumption per unit of computing power, and may adopt more advanced chip technology.
Green mining: As environmental controversy intensifies, mining machine design will focus more on compatibility with renewable energy sources such as hydropower, wind power or solar power to reduce carbon footprint.
The revival of home mining: With the development of low-power devices, Scrypt mining machines that are more suitable for home environments may appear in the future, allowing ordinary people to easily participate in Dogecoin or Litecoin mining.
Decentralization Challenges: The high barrier to entry for ASICs concentrates computing power in large mining farms. In the future, new hardware or algorithms may emerge to encourage more individual miners to participate and maintain the decentralized spirit of blockchain.
